Experiment Setup

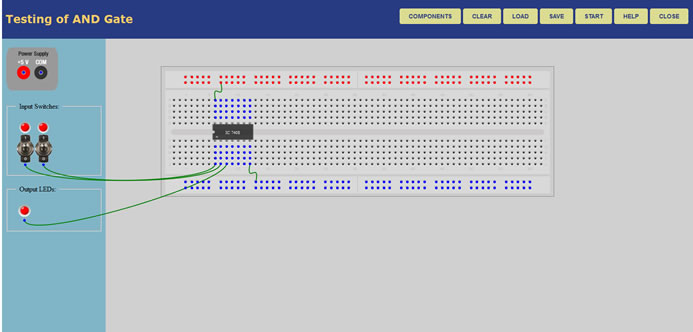

User can draw circuits in a web based GUI and run the circuit as in the picture bellow.




The connection made by the user are then send to the server. Using the received data given by user, the server make the necessary switch connection and run the circuit. It then takes the output from the circuit and returns it to the user as shown bellow in the picture.
